Heartbeat
This example shows how to use the BeatData class to make a dataset for analyzing heartbeats. This class processes the provided ECG records and generates a dataset comprising the extracted heartbeat waveforms, computed features, and their corresponding labels. This type of dataset can be utilized for the heartbeat classification task. For this purpose, any type of machine learning algorithm can be used. The example shows how to include predefined or custom features to the dataset. This requires that an instance of the class BeatInfo be passed as an argument.
This example is available on GitHub.
Install pyheartlib
First, pyheartlib needs to be installed.
try:
import pyheartlib
print(f'Pyheartlib version {pyheartlib.__version__} is already installed!')
except ModuleNotFoundError:
print('Installing pyheartlib...')
%pip install pyheartlib
import pyheartlib
print(f'Pyheartlib version {pyheartlib.__version__} is installed!')
Pyheartlib version 1.21.0 is already installed!
Download raw data
Pyheartlib supports the WFDB format. A popular dataset that uses this format is the “MIT-BIH Arrhythmia Database”. The code below downloads this dataset and stores it in the data directory.
Show code cell content
# Download the raw data and store them in the base data directory
from pathlib import Path
if not Path('data').is_dir():
print('downloading raw data...')
import io, zipfile
from urllib.request import urlopen
url='https://www.physionet.org/static/published-projects/mitdb/mit-bih-arrhythmia-database-1.0.0.zip'
with urlopen(url) as rs:
zipf = zipfile.ZipFile(io.BytesIO(rs.read()))
zipf.extractall('data/')
# Create the config file. For this example, it will be download from the original repository
with urlopen("https://raw.githubusercontent.com/devnums/pyheartlib/main/src/pyheartlib/config.yaml") as file:
content = file.read().decode()
with open("data/config.yaml", 'w') as file:
file.write(content)
Define objects and features
To create a dataset using the BeatData, first it needs to be imported.
from pyheartlib.data_beat import BeatData
The next step is to create an object of the pyheartlib.data_beat.BeatData.
beatdata = BeatData(
base_path="data",
win=[200, 200],
remove_bl=False,
lowpass=False,
progress_bar=False,
)
Descriptions of all the parameters of BeatData can be found here.
For feature computation, an instance of the pyheartlib.beat_info.BeatInfo has to be created.
from pyheartlib.beat_info import BeatInfo
beatinfo = BeatInfo()
BeatInfo includes some predefined features, however custom features can also be defined. Each custom feature definition must adhere to this syntax and its name must start with F_:
def F_new_feature(self):
return return_result
The return_result must be one of the following:
A real number.
A dictionary such as {“Feature_1”: value_1, “Feature_2”: value_2}. Each value can be a real number. Alternatively, each value can be a one-dimensional array, list, or tuple. In this case, their elements must correspond to the channels.
Tuple or one-dimensional NumPy array. Their elements must correspond to the channels. For example, the return value of
F_feat_new()as a tuple (element1, element2) will produceF_feat_new(CH1)for element1 andF_feat_new(CH2)for element2. The order of channels is determined by the CHANNEL field in the config.yaml file.A list. An output as a list will be a list.
The custom features can be added to the beatinfo object by using the add_features() method, the list of all available features can be obtained using the available_features() method, and to select desired features for computation the select_features() method can be used.
Descriptions of all the parameters of BeatInfo can be found here.
from pyheartlib.data_beat import BeatData
# Make an instance of the BeatData
beatdata = BeatData(
base_path="data",
win=[200, 200],
remove_bl=False,
lowpass=False,
progress_bar=False,
)
# Make an instance of the BeatInfo
from pyheartlib.beat_info import BeatInfo
beatinfo = BeatInfo()
# Custom feature.
# This only returns a real value.
# Feature function names has to start with F_.
def F_new_feature1(self):
return 1.09
# Custom feature.
# This function returns two features.
# The feature are returned as a dictionary.
def F_new_feature2(self):
post = beatinfo.F_post_rri()
pre = beatinfo.F_pre_rri()
ret = {"Post": post, "Pre": pre}
return ret
# Custom feature.
# The return value of the following function is a one dimensional array:
# array([max_ch1, max_ch2])
import numpy
def F_new_feature3(self):
# Max value of heartbeat waveform.
ret = numpy.max(self.bwaveform, axis=0)
return ret
# Custom feature.
# This feature returns the segmented heartbeat waveform.
# bwaveform is an attribute and is computed according to the pre and post RR intervals.
def F_new_feature4(self):
wf = numpy.swapaxes(beatinfo.bwaveform, 0, 1)
return list(wf)
# Add custom features to the beatinfo object
new_features = [F_new_feature1, F_new_feature2, F_new_feature3, F_new_feature4]
beatinfo.add_features(new_features)
# Get a list of available feature functions which include predefined and custom features
print(beatinfo.available_features())
['F_absmean_sdrri', 'F_beat_kurtosis', 'F_beat_max', 'F_beat_mean', 'F_beat_min', 'F_beat_rms', 'F_beat_skewness', 'F_beat_std', 'F_compensate_diff_nr', 'F_compensate_ratio', 'F_diff_post_avg_nr', 'F_diff_post_pre', 'F_diff_post_pre_nr', 'F_diff_pre_avg_nr', 'F_fft_features', 'F_heart_rate', 'F_maxmin_diff', 'F_maxmin_diff_norm', 'F_mean_pre_rri', 'F_mean_pre_sdrri', 'F_mean_sdrri', 'F_median_rri', 'F_new_feature1', 'F_new_feature2', 'F_new_feature3', 'F_new_feature4', 'F_nsampels', 'F_post_rri', 'F_pre_rri', 'F_ratio_post_pre', 'F_ratio_post_rms', 'F_ratio_pre_rms', 'F_rms_rri', 'F_rms_sdrri', 'F_std_rri', 'F_std_sdrri']
# Select the desired features
beatinfo.select_features(
["F_beat_max", "F_beat_skewness", "F_new_feature1", "F_new_feature2", "F_new_feature3", "F_new_feature4"]
)
Create inter-patient dataset
Finally, using the save_dataset_inter() method of BeatData, an inter-patient dataset can be created.
# Use the save_dataset_inter method to create an inter-patient dataset.
# The file will be saved in the base data directory.
beatdata.save_dataset_inter(["209"], beatinfo, file="train.beat")
# In a similar way for validation and test datasets
beatdata.save_dataset_inter(["215", "220"], beatinfo, file="val.beat")
beatdata.save_dataset_inter(["111"], beatinfo, file="test.beat")
File saved at: data/train.beat
File saved at: data/val.beat
File saved at: data/test.beat
# Load the datasets
train_ds = beatdata.load_data(file_name="train.beat")
val_ds = beatdata.load_data(file_name="val.beat")
test_ds = beatdata.load_data(file_name="test.beat")
File loaded from: data/train.beat
-Shape of "waveforms" is (2985, 400, 2). Number of samples is 2985.
-Shape of "beat_feats" is (2985, 10). Number of samples is 2985.
-Shape of "labels" is (2985,). Number of samples is 2985.
N L R j e V E A S a J F f / Q
train.beat 2601 0 0 0 0 1 0 383 0 0 0 0 0 0 0
File loaded from: data/val.beat
-Shape of "waveforms" is (5371, 400, 2). Number of samples is 5371.
-Shape of "beat_feats" is (5371, 10). Number of samples is 5371.
-Shape of "labels" is (5371,). Number of samples is 5371.
N L R j e V E A S a J F f / Q
val.beat 5109 0 0 0 0 164 0 97 0 0 0 1 0 0 0
File loaded from: data/test.beat
-Shape of "waveforms" is (2104, 400, 2). Number of samples is 2104.
-Shape of "beat_feats" is (2104, 10). Number of samples is 2104.
-Shape of "labels" is (2104,). Number of samples is 2104.
N L R j e V E A S a J F f / Q
test.beat 0 2103 0 0 0 1 0 0 0 0 0 0 0 0 0

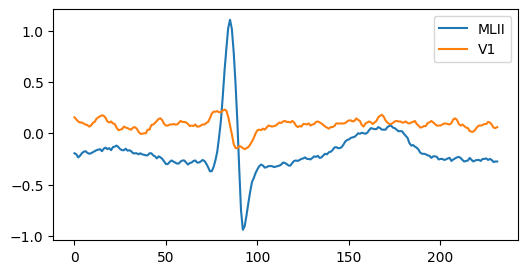

# Plot a hearbeat waveform
wf = train_ds["beat_feats"]["F_new_feature4"][0]
wf_ch1 = wf[0]
wf_ch2 = wf[1]
print(f'Length of waveform: {len(wf_ch1)}')
import matplotlib.pyplot as plt
plt.figure(figsize=(6, 3))
plt.plot(wf_ch1);
plt.plot(wf_ch2);
chs = beatdata.config["CHANNEL"]
plt.legend([chs[0], chs[1]], loc="upper right");
Length of waveform: 232
# Number of samples per class
stat_report = beatdata.report_stats_table(
[train_ds["labels"], val_ds["labels"], test_ds["labels"]], ["Train", "Val", "Test"]
)
print(stat_report)
N L R j e V E A S a J F f / Q
Train 2601 0 0 0 0 1 0 383 0 0 0 0 0 0 0
Val 5109 0 0 0 0 164 0 97 0 0 0 1 0 0 0
Test 0 2103 0 0 0 1 0 0 0 0 0 0 0 0 0
print(train_ds["beat_feats"].tail(3))
# The Post and Pre columns are the results of F_new_feature2
F_beat_max(CH1) F_beat_max(CH2) F_beat_skewness(CH1) \
2982 1.250 0.225 2.189705
2983 1.355 0.290 1.755593
2984 1.420 0.210 2.580627
F_beat_skewness(CH2) F_new_feature1 Post Pre \
2982 -2.138954 1.09 641.666667 663.888889
2983 -1.726974 1.09 494.444444 641.666667
2984 -1.694141 1.09 761.111111 494.444444
F_new_feature3(CH1) F_new_feature3(CH2) \
2982 1.250 0.225
2983 1.355 0.290
2984 1.420 0.210
F_new_feature4
2982 [[-0.19, -0.2, -0.2, -0.19, -0.17, -0.17, -0.1...
2983 [[-0.015, -0.025, -0.04, -0.03, -0.025, -0.015...
2984 [[0.135, 0.15, 0.135, 0.125, 0.1, 0.115, 0.135...
Create intra-patient dataset
To create an intra-patient dataset, the save_dataset_intra method can be used.
# Use the save_dataset_intra method to create an intra-patient dataset.
# The file will be saved in the base data directory.
beatdata.save_dataset_intra([209, 215], beatinfo)
# Load datasets
train_ds = beatdata.load_data(file_name="intra_train.beat")
test_ds = beatdata.load_data(file_name="intra_test.beat")
File saved at: data/intra_train.beat
File saved at: data/intra_test.beat
File loaded from: data/intra_train.beat
-Shape of "waveforms" is (1897, 400, 2). Number of samples is 1897.
-Shape of "beat_feats" is (1897, 10). Number of samples is 1897.
-Shape of "labels" is (1897,). Number of samples is 1897.
N L R j e V E A S a J F f / Q
intra_train.beat 1781 0 0 0 0 57 0 59 0 0 0 0 0 0 0
File loaded from: data/intra_test.beat
-Shape of "waveforms" is (4431, 400, 2). Number of samples is 4431.
-Shape of "beat_feats" is (4431, 10). Number of samples is 4431.
-Shape of "labels" is (4431,). Number of samples is 4431.
N L R j e V E A S a J F f / Q
intra_test.beat 3995 0 0 0 0 108 0 327 0 0 0 1 0 0 0
# Number of samples per class
stat_report = beatdata.report_stats_table(
[train_ds["labels"], test_ds["labels"]], ["Train", "Test"]
)
print(stat_report)
N L R j e V E A S a J F f / Q
Train 1781 0 0 0 0 57 0 59 0 0 0 0 0 0 0
Test 3995 0 0 0 0 108 0 327 0 0 0 1 0 0 0
print(train_ds['beat_feats'].tail(3))
# The Post and Pre columns are the results of F_new_feature2
F_beat_max(CH1) F_beat_max(CH2) F_beat_skewness(CH1) \
999 0.885 0.245 1.090895
1000 0.710 0.270 0.565561
1001 0.650 0.220 0.376462
F_beat_skewness(CH2) F_new_feature1 Post Pre \
999 -3.074383 1.09 583.333333 555.555556
1000 -2.327165 1.09 550.000000 583.333333
1001 -1.794805 1.09 566.666667 550.000000
F_new_feature3(CH1) F_new_feature3(CH2) \
999 0.885 0.245
1000 0.710 0.270
1001 0.650 0.220
F_new_feature4
999 [[-0.125, -0.11, -0.085, -0.09, -0.12, -0.14, ...
1000 [[-0.12, -0.135, -0.135, -0.135, -0.13, -0.125...
1001 [[-0.135, -0.125, -0.11, -0.13, -0.135, -0.165...
